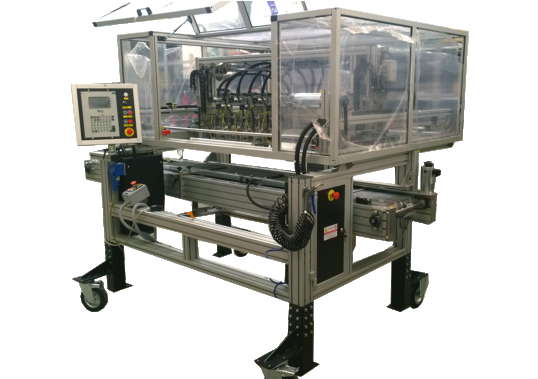

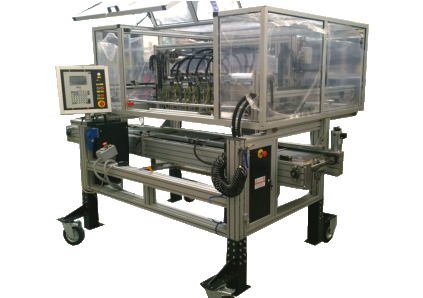

TEA 1500J & 2000J

Designed specifically for the connection and integration

with pot fillers.

One model, two sizes, multiple configurations

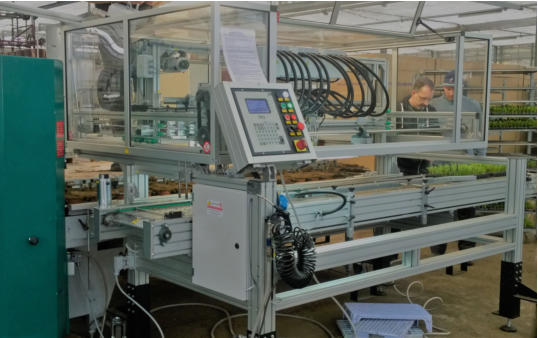

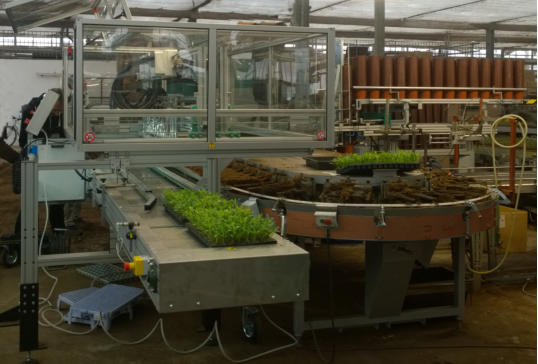

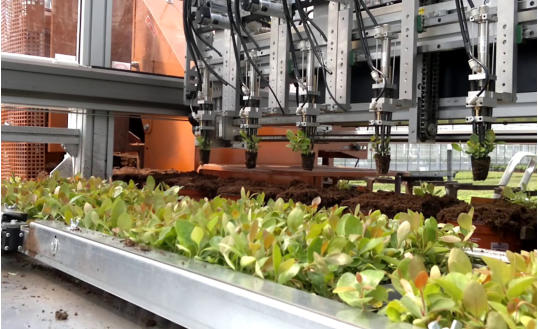

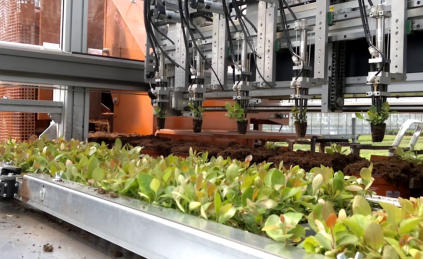

The « J » models have been studied together with the major manufacturers of pot-fillers, to be able to place plugs into pots or packs directly on the transport system of the pot- filler. They can be connected and integrated to pot fillers with linear pot-track system or round caroussel. The transplanters can be configured from 2 up to 16 heads, depending on the model of the pot-filler. It is possible to place up to 7 plants into the same pot. Pickup can take place from several plug trays at the same time, allowing complete emptying. The main operating parameters, such as the working speed, planting depth, pick-up height, and the change from the “standard pick-up” mode to the “side pick-up” mode, can be adjusted while the machine is operating, thus making fine-tuning for the operating conditions very easy. Individually motorized gripping heads, available in two sizes (30mm or 50mm ) and easily interchangeable. Depending on the application, the output is aprox. 1000 - 1200 plants/hour per head. A USB flash drive is provided for backups and software updates. Compressed air connection is required.

Specifications TEA1500J

for pot fillers with round or linear pot-track from 2 up to 12 transplanting heads output: 1000 - 1200 plants/hour per head pickup from 1 or 2 plug-trays tray size: max. 40 x 60 cm dimensions: cm 194 x 320 x h 210 weight 650 Kg power consumption: 1 Kw / hour voltage: 220 Volt or 110 Volt air pressure: 8 Bar - 80 l/min Specifications TEA2000J For pot-fillers with linear transport system up to 16 transplanting heads output: 1000 plants/hour per head pickup from a maximum of 3 trays tray size: max 40 x 60 cm dimensions: cm 203 x 420 x h 210 weight 700 Kg power consumption: 1 Kw / hour voltage: 220 Volt or 110 Volt air pressure: 8 Bar - 80 l/min
HOME HOME TRANSPLANTERS TRANSPLANTERS POT ROBOT POT ROBOT TRIMMER TRIMMER PARTNERS PARTNERS CONTACT US CONTACT US
back back
To contact us: tel: +39 0522 394060 - fax: +39 0522 344775 e-mail: comm@teaproject.it
Layout TEA 1500J Layout TEA 1500J
